Highsea HDPE LDPE PE Nylon Chicken Biodegradable Carry Poly Nylon Polythene Garbage T-Shirt Shopping Plastic Bag Making Machine Price | 30000-10000AUD
Highsea HDPE LDPE PE Nylon Chicken Biodegradable Carry Poly Nylon Polythene Garbage T-Shirt Shopping Plastic Bag Making Machine Price | 30000-10000AUD
Regular price
$30,000.00 AUD
Regular price
Sale price
$30,000.00 AUD
Unit price
per
Basic Info.
Product Description
| HSGN-450X2 HIGH SPEED DOUBLE LINES HIGH SPEED T SHIRT BAG MAKING MACHINE (Rectification Device & Dancing Roller) |
| Application |
| These machines are heat sealing and heat cutting bag making machine, which are suit for printing and non-printing bag making. The material of bag is HDPE, LDPE. HSGN-450X2 is a high speed plastic bag making machine which use double servo motors control. The most highlight of this machine is using EPC vibration rectification device and dancing rollers integrated design. Zigzag function keeps the high output T-shirt bags. |
| TECHNICAL PARAMETER | |
| Model | HSGN-450X2 |
| Production Line | 2 Lines |
| Bag on roll Width | 200mm - 400 mm |
| Bag Length | 330mm - 650 mm |
| Set Line Speed | 160-150m/min |
| Film thickness | 10-50µm micron per layer |
| Production Speed | 100-300pcs/min*2 Lines |
| Core Diameter(Min.) | 25-60 mm |
| Rewinder Diameter | 120mm (Max.) |
| Film Unwind Diameter | Φ900mm |
| Total Power | 12KW |
| Air consumption | 6HP |
| Machine Weight | 2600KG |
| Machine Dimension | L6000*W1700*H1900mm |

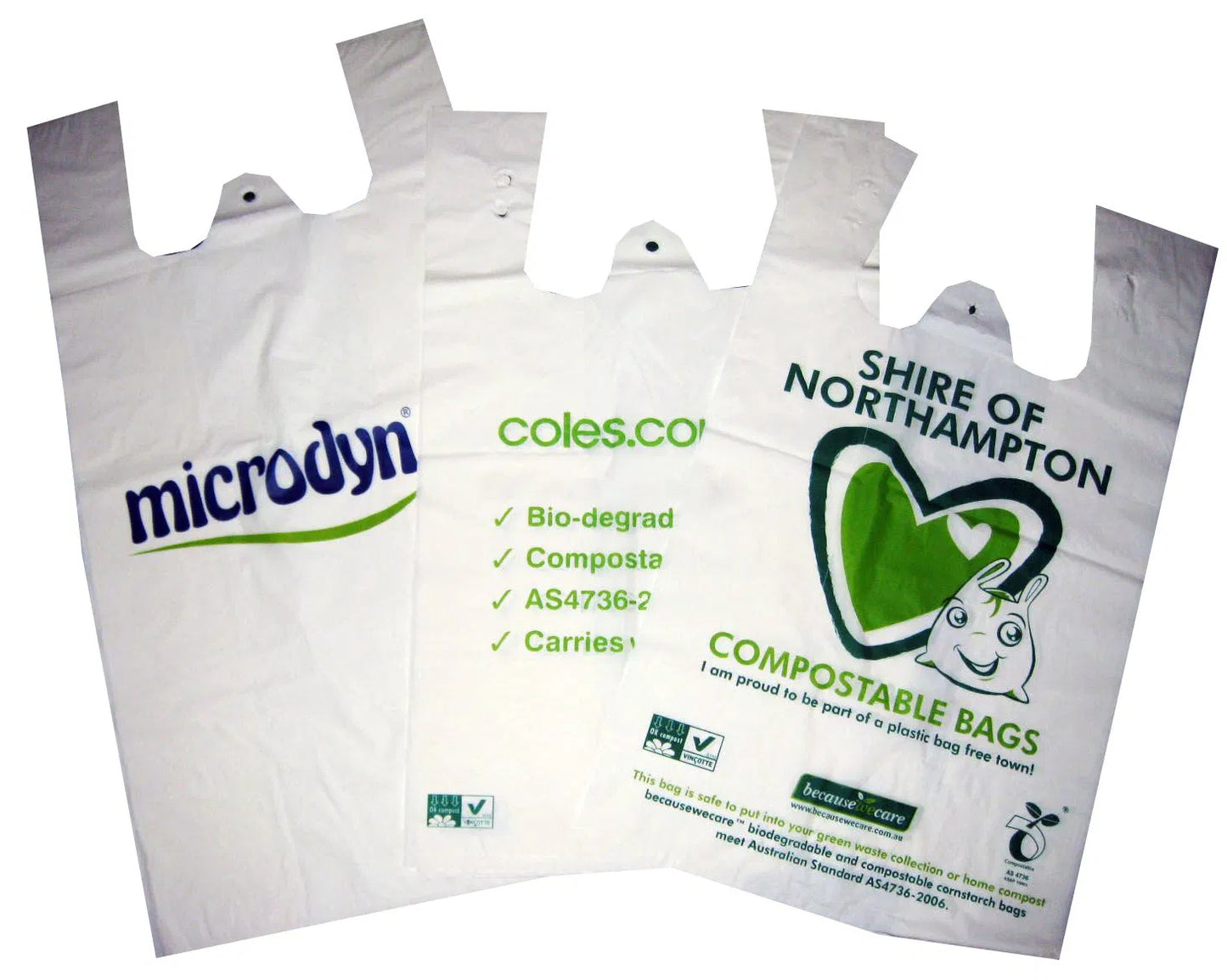

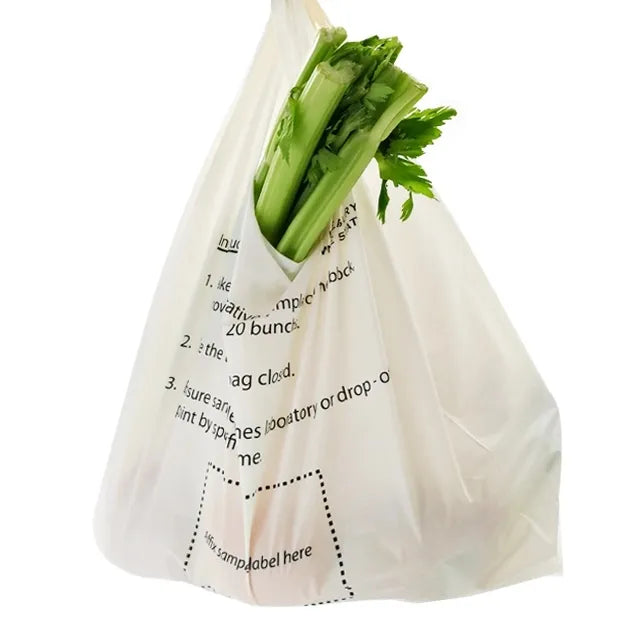

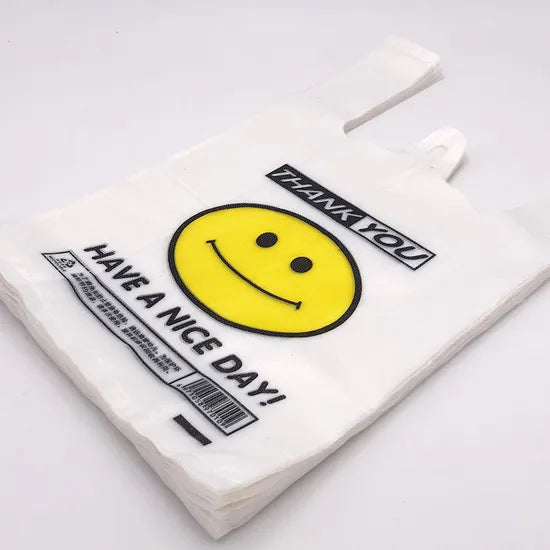

| Samples of Plastic Bag |
| Feature and structure |
| 1. Main control panel adopt touch screen Delta from Taiwan, high definition 2. The drive system of whole machine adopts PLC Microcomputer control (Single Chip control system ) on punch machine which integrate control of bag making part and punching part. 3. Set all function with one touch screen, simple and easy operation. 4. Machine will automatically stopped if film jammed which is detected by sensor 5. Independent winder part, high efficient unwind control; max diameter of single unwinding is 800mm; unwinding roller is choked by air shaft, 6. Automatic fold function and put on conveyor unit by unit. 7. Automatic stacks the bag and collects. 8. When the bags stack at the Set numerical, mechanical hands will automatically grab bags and machine will not stop.) on punch machine which integrate control of bag making part and punching part. |
| SPECIFICS |
| The condition of machine operating |
| A. illumination no exceed 3000LX B. altitude no exceed 1000m C. The temperature of stuff around the machine should be no higher than +40ºC and no lower than -20ºC. D. The relative humidity of air no exceeds 85%. E. The place should no have conductive dust. F. Circumstance of no blast danger and fire. |
