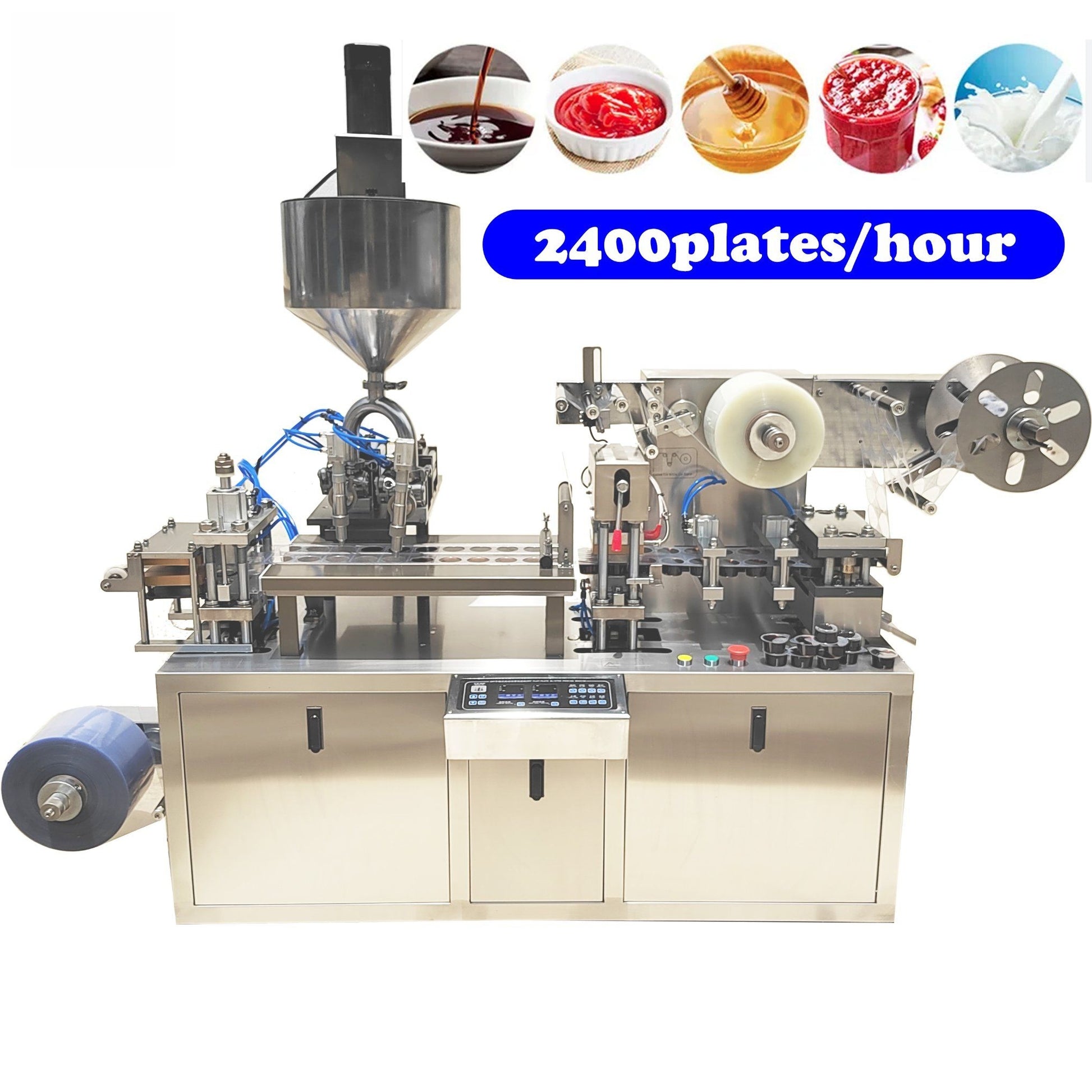

Best Price High Quality High Speed Automatic Jam Ketchup Makeup Peanut Butter Juice Liquid Blister Packing Machine | 8000-12000 AUD
Best Price High Quality High Speed Automatic Jam Ketchup Makeup Peanut Butter Juice Liquid Blister Packing Machine | 8000-12000 AUD
Regular price
$8,000.00 AUD
Regular price
Sale price
$8,000.00 AUD
Unit price
per
(1). Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user's requirement.
(2). It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
(3). It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
(4). The machine is suitable for industries of foodstuff, medicine, medical instruments,hardware, electronics and etc for packing.
(2). It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
(3). It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
(4). The machine is suitable for industries of foodstuff, medicine, medical instruments,hardware, electronics and etc for packing.
| Model | DPP-88 |
| Punch Frequency | 10-20times/min |
| Production Capacity | 2400plates/hour |
| Max. Forming Area & Depth | 105x70(standard depth <=15mm), Max. Depth 25mm( As adjusted |
| Standard Stroke range | 30-80mm(can be designed as per user's required) |
| Standard Plate Size | 80x70mm (can be designed as per user's required) |
| Air Pressure | 0.4-0.6Mpa |
| Compressed Air Required | Air compressor≥0.3m3/min |
| Total Power Supply | 220V 50Hz 2.8Kw |
| Main Motor | 0.75Kw |
| PVC Hard Film | 0.15-0.5*110 (mm) |
| PTP Aluminum Film | 0.02-0.035*110 (mm) |
| Dialysis Paper | 50-100g*110(mm) |
| Mold Cooling | Tap water or Recycling water |
| Overall Dimension | 1840x900x1300 (mm)(L*W*H) |
| Weight | Net Weight:480kg Gross Weight: 550kg |
| Noise Index | <75dBA |
Basic Info.
Model NO.
DPP-88
Application Field
Food, Medical, Commodity, Machinery & Hardware, Beverage, Chemical
Driven Type
Electric
Automatic Grade
Automatic
Structure
Multifunctional Adjustable Size
Packaging Material
Wood
Packaging Type
Cartons
Usage
Outer, Inner
Type
General
Punch Frequency
10-20times/Min
Capacity
2400plates/Hour
Max. Forming Area & Depth
105*70(Standard Depth ≦15mm), Max. Depth 25mm
Standard Stroke Range
30-80mm
Standard Plate Size
80*70mm
Air Pressure
0.4-0.6MPa
Compressed Air Required
Air Compressor≥0.3m3/Min
Total Power Supply
220V 50Hz 2.8kw
Main Motor
0.75kw
PVC Hard Film
0.15-0.5*110 (mm)
Transport Package
Export Standard Wooden
Specification
1840*900*1300mm
Trademark
HERUN
Origin
Shanghai
HS Code
8422400090
Production Capacity
100000sets/Year
Packaging & Delivery
Package Size
184.00cm * 90.00cm * 130.00cm
Package Gross Weight
550.000kg
