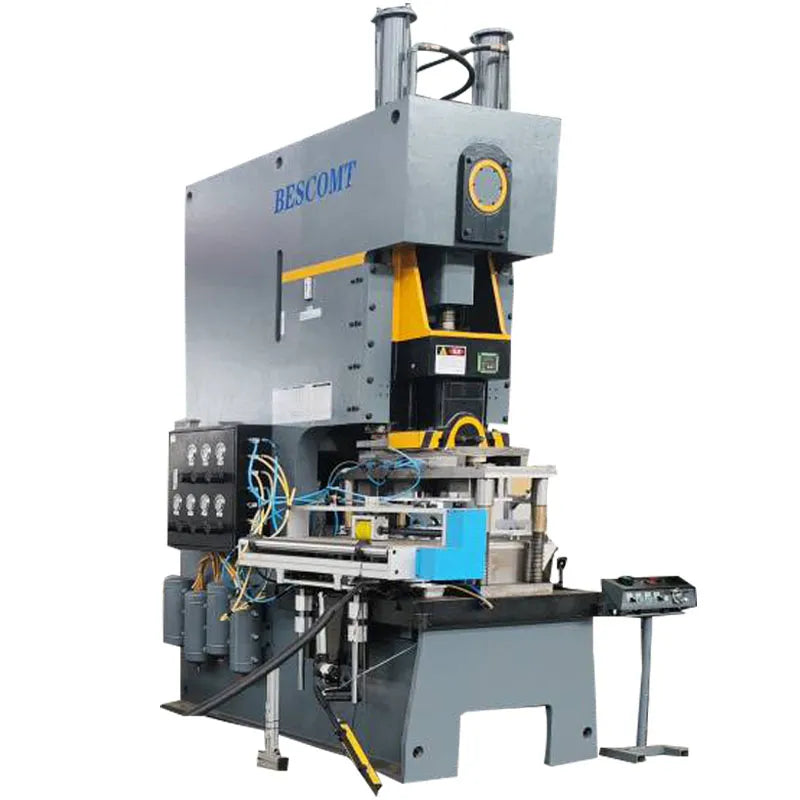

Automatic Single Aluminum Foil Take Away Lunch Box Container Making Punching Machine
Automatic Single Aluminum Foil Take Away Lunch Box Container Making Punching Machine
Regular price
$35,000.00 AUD
Regular price
Sale price
$35,000.00 AUD
Unit price
per
Basic Info.
Product Description
This production line can work automatically.Worker control and regulate this production line through electric control equipment.There is an auto-lubricator on the feeder, which can lubricate aluminium foil automatically.The foil feeder provides the supply of right quantity and length of aluminium foil, and it is controlled by servo system in SEIMENS, which assure a high-precision step.
Production Process:

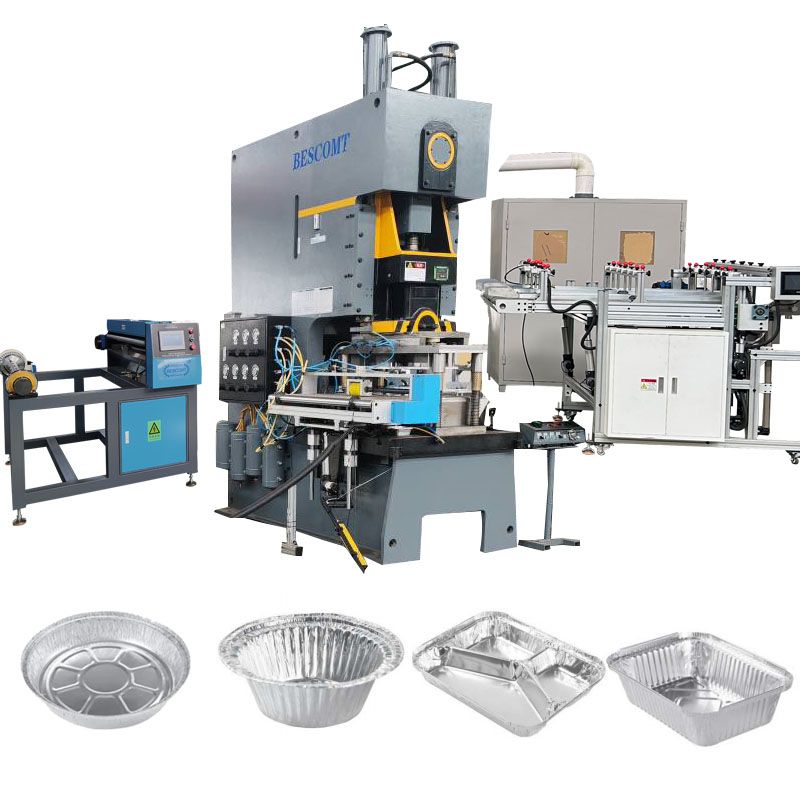

Lubricating material-------Feeding material-------Punching by the press----------Collecting products by the stacker-------Collecting waste by the waste collector
Cover Area:
Based on the parameters of these machines, you can have a clearer understanding of the floor space of the machine you want to purchase
Main features:
1.This production line can work automatically.Worker control and regulate this production line through electric control equipment.There is an auto-lubricator on the feeder, which can lubricate aluminium foil automatically.The foil feeder provides the supply of right quantity and length of aluminium foil, and it is controlled by servo system in SEIMENS, which assure a high-precision step.
2.We can provide you different capacity machine,etc:45ton,63ton,80ton,100ton.And different molds for various food container,which can made with one cavity,two cavities.
3.We can also design and manufacture according to customer's requirment and customer's target price.
| Specification | 45T production line 45 | 63T production line | 80T production line |
| Pressure (KN) | 450 | 630 | 800 |
| Stroke (times/min) | 60-50 | 60-50 | 55-45 |
| Weight (kg) | 5500 | 7000 | 8500 |
| Voltage | 220V/380V 6.5KW | 220V/380V 6.5KW | 220V/380V 8.5KW |
| The production line dimension (L*W*H) mm | 5300*1900*3000 | 6000*1900*3500 | 7000*2000*3800 |

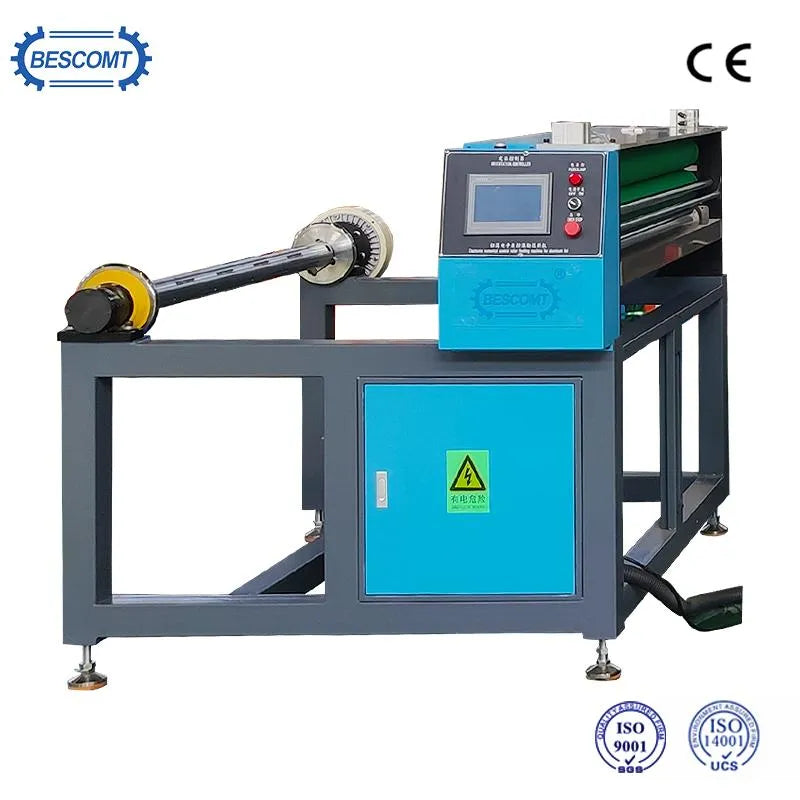

1.Automatic Lubricating Feeder
2.Long Life Contiainer Punch Die
3.Auto Stacker
4.Waste collector
